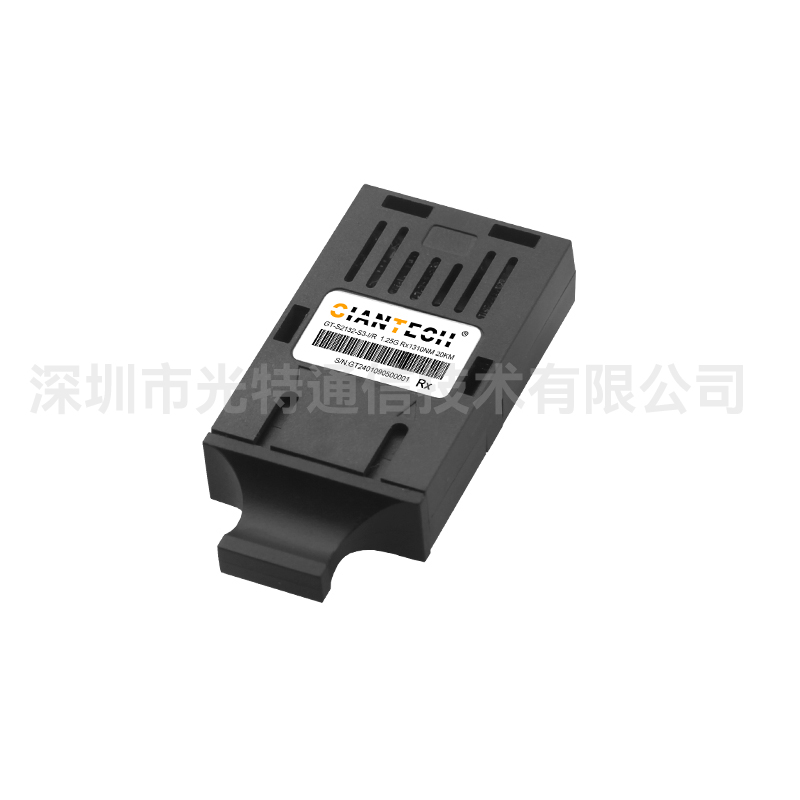

1*9光模塊 155M TX/RX SM SC 20KM

品牌：GIANTECH
型號：GT-S1132-S3-I/T & GT-S1132-S3-I/R
速率：155M
傳輸距離：20KM
波長：Tx1310NM/Rx1310NM
接口：SC
模式：?jiǎn)问諉伟l(fā)

微信詢價

產品介紹

應用范圍

選型表

結構尺寸

資料下載

Feature：

SC/FC/ST receptacle optical interface and pigtail optical interface

Single mode Duplex fibers optical transceiver

+3.3V Power Supply

Standard PECL data output with signal detect indication

Multi-sourced 1×9 package

High quality 1310nm MQW-FP LD/1550nmDFB LD

Receiver has a planner InGaAsP PIN

Application

Applied to optical fiber transmission systems,such as SDH\ATM\Gigabit Ethernet with bit rate up to 155Mbps

產品型號 Product Model	速率 Data Rate	接頭類型 Port	單多模 Fiber	波長 Wave(nm)	傳輸距離 Distance (KM)	電壓 Voltage	信號電平 Signal Level	溫度 Temp. (℃)
GT-S1132-**/T	155Mbps	SC/FC/ST	TX SM	SM 1310	20km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1134-**/T	155Mbps	SC/FC/ST	TX SM	SM 1310	40km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1136-**/T	155Mbps	SC/FC/ST	TX SM	SM 1310	60km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1158-**/T	155Mbps	SC/FC/ST	TX SM	SM 1550	80km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S115X-**/T	155Mbps	SC/FC/ST	TX SM	SM 1550	100km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S115Y-**/T	155Mbps	SC/FC/ST	TX SM	SM 1550	120km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1132-**/R	155Mbps	SC/FC/ST	RX SM	SM 1310	20km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1134-**/R	155Mbps	SC/FC/ST	RX SM	SM 1310	40km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1136-**/R	155Mbps	SC/FC/ST	RX SM	SM 1310	60km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S1158-**/R	155Mbps	SC/FC/ST	RX SM	SM 1550	80km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S115X-**/R	155Mbps	SC/FC/ST	RX SM	SM 1550	100km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S115Y-**/R	155Mbps	SC/FC/ST	RX SM	SM 1550	120km	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
根據使用場景的不同，可選以下產品 Depending on the usage scenario, you can choose from the following products:
1. 接地工業級:-40~105°C(**FC/ST) 2. 2.過EMC-CLASS A(金屬屏蔽罩+屏蔽外殼) 3. 3.LVPECL電平需第四腳TTL電平 4. 4.定制高品質FC/ST接頭光模塊(見上圖) 5. 5.雙芯片5V光模塊需要以上光模塊，可咨詢廠家					1. Grounding industrialTemperature Range: -40°C to +105°C 2. EMC-CLASS A:Metallic shield and Plastic housing. 3.LVPECL-SD:LVTTL 4.Customizable FC/ST Metallized connector 5.5v Optical Modules For more information,please contactthe manufacturer!
